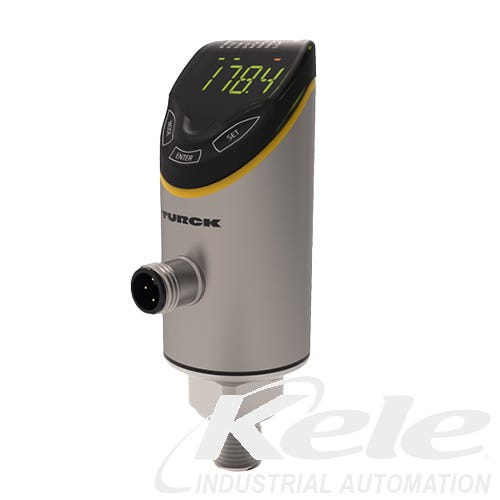

PS310-0V-03-LI2UPN8-H1141 PS+ Programmable Pressure Sensor [100001488]

Price $408.20

Call for Availability

SKU

PS310-0V-03-LI2UPN8-H1141

Pressure Sensor, Relative Pressure: -1…0 Bar, 4-digit, 2-colored, 12-segment display, rotatable by 180 degrees

ID# 100001488

Design With display (integrated probe)
Process connection 1/4″ NPT-18 male thread
Pressure type Relative pressure
Pressure range bar -1…0 bar
Pressure range psi -14.5…0 psi
Operating voltage 18…33 VDC
Electrical output Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link
Voltage output 0…10 V
Current output 4…20 mA
Communication protocol IO-Link
Electrical connection Connector, M12 × 1
Housing material Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV
Materials (contact with media) Stainless steel 1.4404 (AISI 316L)/1.4542 (AISI 630)
Medium temperature -30…+80 °C
Ambient temperature -40…+80 °C
Protection class IP66/IP67/IP69K
Approvals CE, metrological certification (RUS), cULus
